Round Height 40mm Automatic Inline Capping Machine Rotary 500Kg
A brief introduction to the machine:

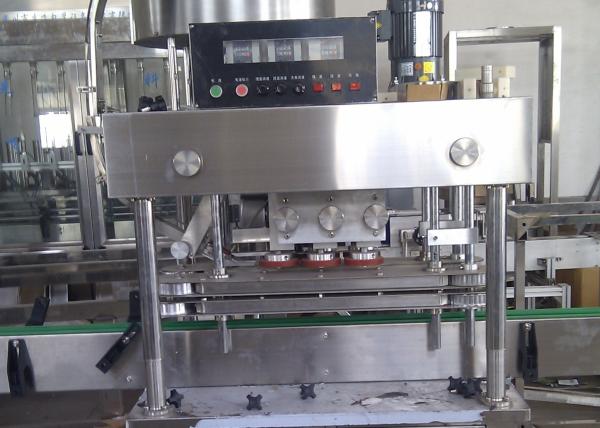

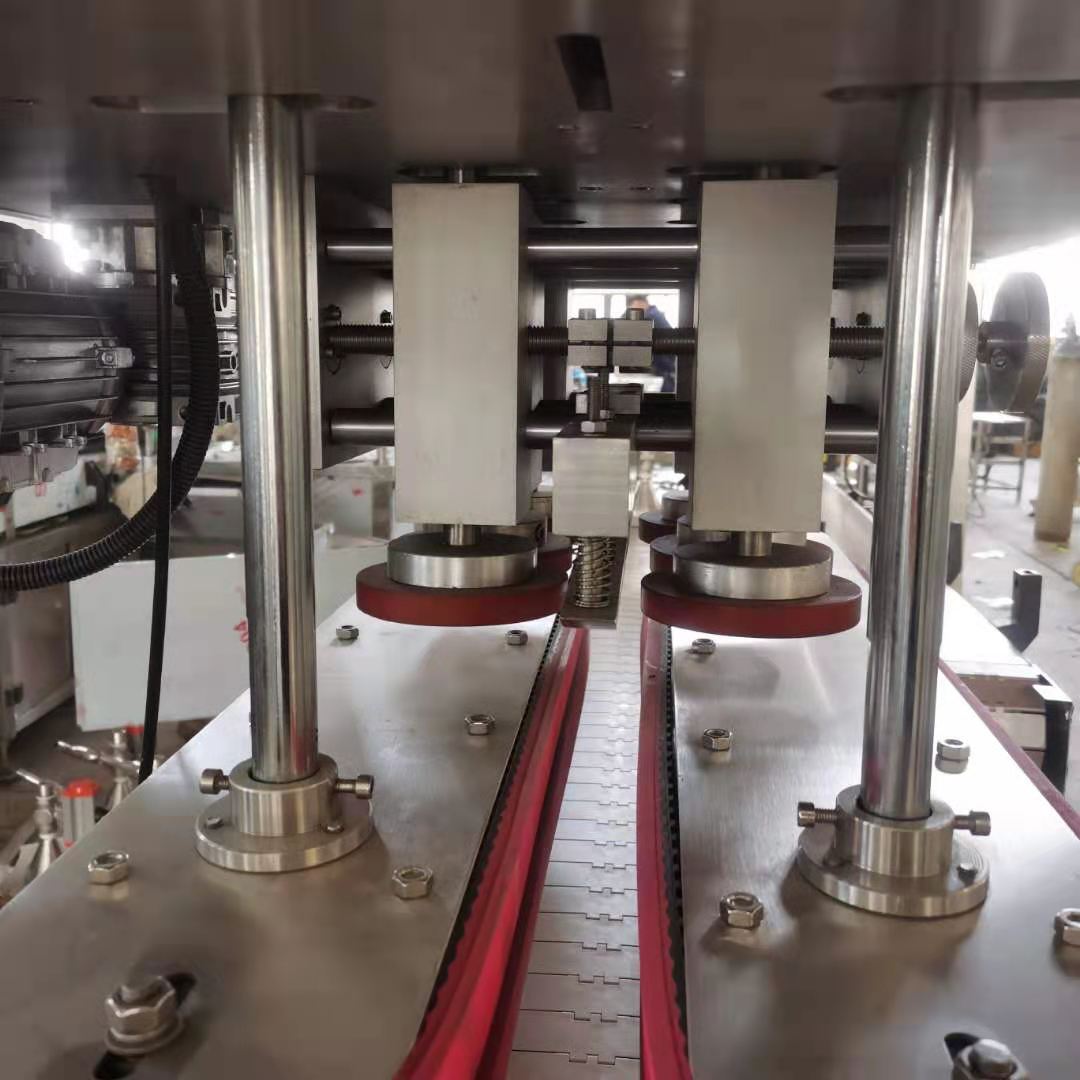

FXZ-6L Inline Capping Screw Machine is mainly used for placing cylindrical metal or plastic caps with internal threads on the opening of bottles and tightening. For example, cylindrical beverage bottles with internal threads, edible oil bottles, pill bottles and so on, can be used in medicine, food, beverage, oil, pesticide and other industries, a wide range of uses. Usually used with conveyor, filling machine and other production line equipment, constitute a complete set of production line. It can also be used separately after the product is configured with a conveyor belt.
Put into use:
1. Bottles commonly used in medicine, such as tablets in plastic bottles and medicine bottles filled in glass bottles, are all suitable for this capping machine.
2. Plastic bottle caps used in agriculture for filling suspended emulsions are also suitable for this capping machine.
3. Through the simple adjustment of the machine, it can be used in various bottle types, except for some special heterosexual bottles, which may need the help of the bottom bracket.
Technical parameters:
◆ Applicable cap diameter: φ20-φ50 mm
◆ Suitable bottle diameter: φ45-φ140 mm
◆ Suitable for bottle height: 40-250 mm
◆ Maximum capacity: 6000 bottles/hour (frequency control)
◆ Cover accuracy: ±1 %
◆ Total Power: 1.8 kw
◆ Dimension: 2000×850×2100 mm
◆ Weight: 500 kg
Elements brands list:
Round Height 40mm Automatic Inline Capping Machine Rotary 500Kg
Competitive Advantage:
- Control interface -- the traditional control panel knob control, simple operation interface, safe and reliable;
- Electrical components -- international famous brands are adopted to ensure the safety, reliability and accuracy of the equipment;
- Mechanical parts - transmission gear belt and bottle conveyor belt are made of Italian McGowdy, the rest of the machine parts are made of 304 stainless steel.
- Function expansion -- can be configured according to customer's special requirements, such as: scanning code elimination device can be added.
What services can Changzhou Xianfei Packing Equipment Technology Co., Ltd. provide for you?
1. Product inspection
We have our own factory and quality control department, and we will check carefully to ensure the quality of the products before sending them to our customers
2. Sample services
We can send you a video of the machine in action.Welcome to visit our company and have a look at the machines being produced in our factory
3. Customization services
A: We can customize the machine according to the mechanical power, materials and bottles you provide
B: We can also offer you some professional advice on machinery.As you know, we have been in the machinery business for 16 years.
4. About install
We can provide installation.There are two options.
The first option: We can send our engineers to your company for debugging and maintenance, and your company will bear the cost of air ticket, visa, accommodation, labor and other expenses for this trip.
Option 2: Offer an online service.
